Analog Lateral

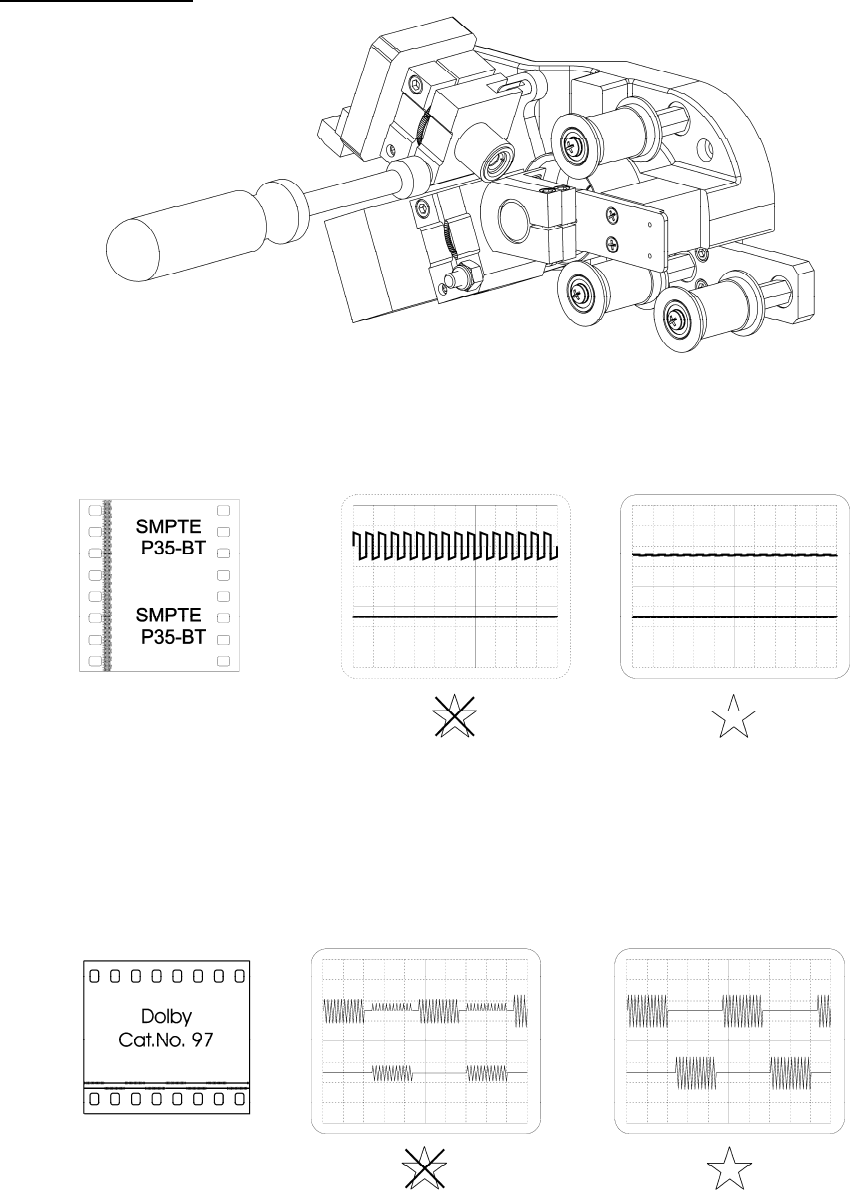

Thread and run SMPTE P35-BT Use a dual trace oscilloscope to view the waveforms. A 7/16" nut driver

is used to adjust the reader laterally. The desired result is a minimal, equal signal on both channels. The

reader is set to read 100% track width. A very small waveform may be seen.

Thread and run Dolby Cat. No. 97. Use a 7/16" nut driver to adjust the reader laterally. The goal is to

minimize cross talk between the channels. Zero cross talk should be easy to achieve. The channels may

be at different levels until the LED is in perfect adjustment. You may want to recheck this setting after

that step.
